| PISTOLS |
Pistol 200 |
 |
| The pistol is equipped with a trigger guard and safety. |
| Type | Máx. Pressure (bar) |
Lance leng (meters) |
Weight (Kg) |
Advised máx. Flow (l/min) |
Lever action trigger |
Nipples |
| PISTOL 200 | 380 | 0,66 | 3,3 | 100 | Optional | View |
Pistol A-1 |
|
| The pistol is equipped with a trigger guard and safety. |
| Type | Máx. Pressure (bar) |
Lance leng (meters) |
Weight (Kg) |
Advised máx. Flow (l/min) |
Lever action trigger |
Nipples |
| PISTOL A-1 | 750 | 0,66 | 5,2 | 170 | Optional | View |
Pistol P-800 |
 |
| The pistol is equipped with a trigger guard, safety, and handle. |
| Type | Máx. Pressure (bar) |
Lance leng (meters) |
Weight (Kg) |
Advised máx. Flow (l/min) |
Lever action trigger |
Nipples |
| PISTOL P-800 | 800 | 0,66 | 3,3 | 100 | Optional | View |

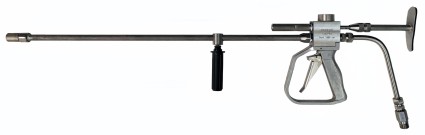

Discharge pistol |
 |
| Is equipped with a trigger guard, safety, handle, and adjustable shoulder rest. Operation: Pressing the trigger closes the discharge outlet, applying pressure to the pump. Releasing the trigger opens the discharge outlet, and the water flows out through the drain pipe and the lance nozzle without pressure. This is a very safe way to work because releasing the trigger completely depressurizes the system. A significant advantage is the ease of repair. This is done by replacing the internal cartridge without the need for tools, an operation that takes less than a minute. |
| Type | Máx. Pressure (bar) |
Lance leng (meters) |
Weight (Kg) |
Advised máx. Flow (l/min) |
Lever action trigger |
Racores |
| PISTOL 1000D | 1000 | 0,8 | 4,7 | 100 | - | View |
 |
 |
| Device that allows the operator to press the trigger comfortably and with little effort. It incorporates a protector, which prevents accidental activation of the gun. | Device that allows the operator to support the pistol on the shoulder, and touch the trigger easily. It incorporates a guard, which avoids the accidental operation of the pistol, and also a butt to support it on the shoulder. |
 |
| Code | Position | Description |
Lenght (mm) |
| 4017XX838411 | 1 + 2 + 3 | Full extension |
(To choose) |
| 4013 | 1 | Coupling |
- |
| 2232004 | 2 | OR |
- |
| 48170483841 | 3 | Lance pistol extension |
400 |
| 48171083841 | 1.000 | ||
| 48171583841 | 1.500 | ||
| 48172083841 | 2.000 | ||
| 2232028 | 4 | OR |
- |
| 453251 | 5 | 14" F nozzle nut |
- |
| 453250 | 6 | Nozzle nut |
- |
| - | 7 | Nozzle 04 type, concentrate Straight jet |
- |
| - | 8 | Nozzle 01 type 1/4" BSPP, Straight jet, ceramic graft, flow stabilizer. |
- |
| - | 9 | Nozzle 06 type 1/4" BSPT, fan jet |
- |
