WATER ARMOR - TWA
Modular design with replaceable parts
The TurtleSkin® TWA water armor safety equipment consists of a suit component system designed with multiple panels that can be replaced individually. Gaiters, suits and gauntlets are each sold separately.
Protection up 2.800 bar*.
One size fits all operators
Garment features adjustable straps. The thigh panels on the chaps can be lengthened or shortened to fit the height of any operator.
Open back keeps you cooler longer
Unique design provides water jet protection for the front of the operator, while the open back allows for increased circulation.
Built-in knee pad for maximum protection and confort
Cushioned knee pads that protect knees from UHP water jet streams and reduce discomfort from kneeling on hard surfaces.
Lightweight suit protects without tiring
Patented technology features the tightest weave ever achieved with aramid fibers, producing water jet safety material that is both lightweight and comfortable to wear.
Light weight

Made of aramid fibers, is the most resistant material with a lower weight.
Hinged panel design for grater flexibility and range of motion
Patented fabric system bends with the body. Each suit component panel moves independently, allowing for greater flexibility and ease of use.
Tough material that's easy to maintain
Rugged outer layer is low-maintenance and easy to clean, and also provides improved chemical resistance.

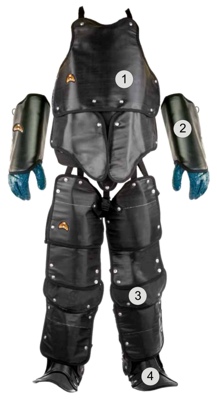

(1) Vest / Torso panel, (2) Gauntlet, (3) Chaps, (4) Gaiters

 TEST RESULTS: No penetration occured beyond prolective system with waterjet traveling at 2,4 m/s, no closer than 76 mm at these conditions.
Pressure (bar) Flow (l/min) Ĝ Nozzles Nozzles material
2.800 21 0,9 Sapphire
2.500 19 0,9 Sapphire
1.400 42 1,3 Tungston
700 61 1,8 Tungston
 The suit does not protect the fixed straight stream. Only the jet that passes quickly.

TWA PLUS
With the same features as above but with more resistance to pressure.
 TEST RESULTS: No penetration occured beyond prolective system with waterjet traveling at 0,5 m/s, no closer than 76 mm at these conditions.
Pressure (bar) Flow (l/min) Ø Nozzles Nozzles material
2.800 21 0,9 Sapphire
1.400 42 1,3 Tungston
